Powertech Miniature 12V 3A PWM Solar 3-Stage Charge Controller W/ Timer Control

MINIATURE 12V SOLAR CONTROLLER

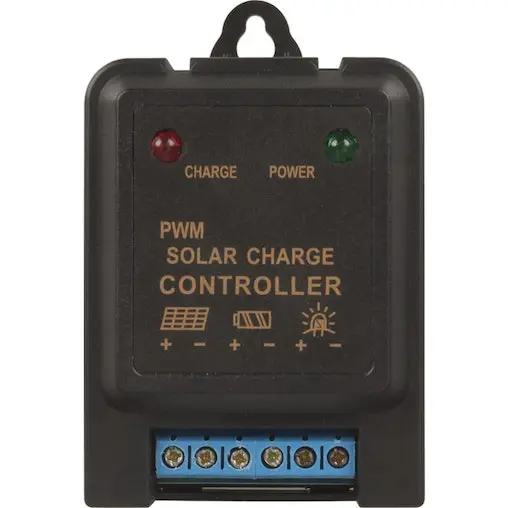

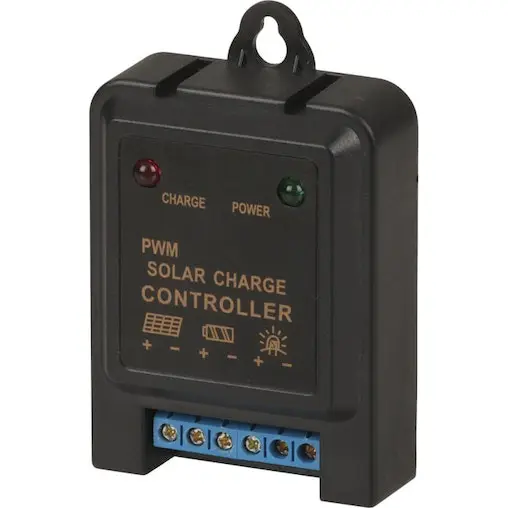

Miniature 12V 3A PWM Solar Charge Controller

This compact solar controller uses Pulse Width Modulation (PWM) to manage battery charging from a connectedsolar panel. It features light and timer control, similar tostreet lights, and three charging states (bulk, equalise, and float charging). It provides all the important safety features such as overcharge, over-discharge, over-current, short-circuit, and reverse-polarity protection.

Features: – Red charge LED indicator
– Green power LED indicator
– Hang hook
– Battery voltage automatic identification
– PWM charging mode
– Comprehensive electronic protection

Specifications:
Rated Voltage: 12V
Strong Charging Pressure: 14.8V
Equilibrium Charging: 14.5V
Float Charging Pressure: 13.7V
Under Voltage: 10.8V
Under Recover Voltage: 13V
Non–Load Current: ≤6mA
Charging Circuit Voltage drop: ≤0.2V
Discharge Circuit Voltage drop: ≤0.1V

Specifications

DC Voltage : 12.0V

IP Rating : 22

Dust/Particle Ingress Protection : 2 – Objects > 12.5mm, Fingers or small objects

Liquid/Moisture Ingress Protection : 2 – Dripping water when tilted to 15deg

Width : 52.0mm

Height : 22.0mm

Depth : 80.0mm

Weight : 33.0kg

Charge Controller Technology : Pulse Width Modulated (PWM)

Max Charging Current : 3.0A

Max Load Current : 3.0A

Includes:

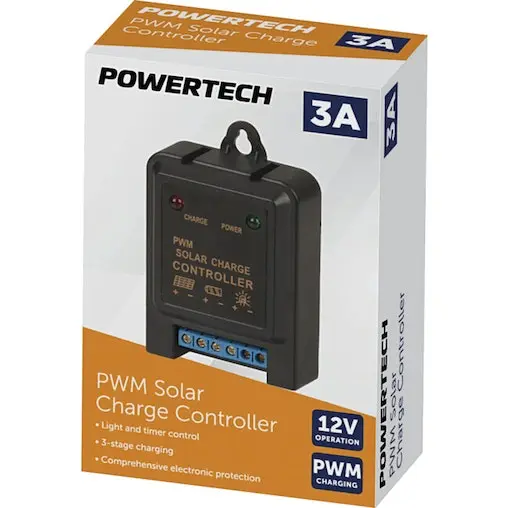

1 x Solar Controller
