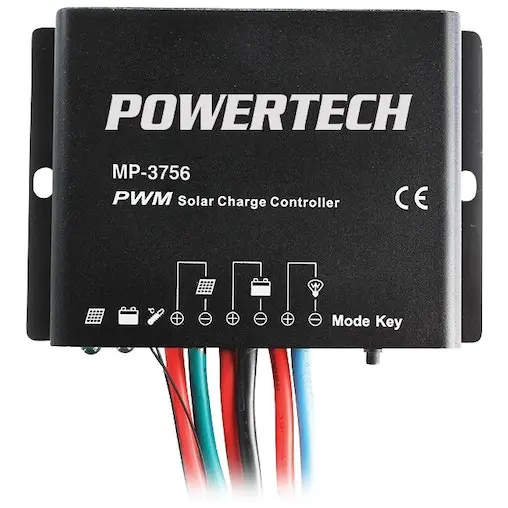

Powertech 12V/24V 10A PWM Auto Solar Charge Controller W/ Timer Function IP67

12V 24V 10A SOLAR CONTROLLER

12/24V 10A PWM Solar Charge Controller with Timer Function IP67

A highly efficient fully automatic 12/24V PWM solar charge controller that adopts the most advanced digital technology which increases battery lifetime and improves solar system performance. With a robust industrial housing and IP67 protection this charge controller is suited to mostapplications especially extreme outdoor environments where corrosion, dust and water ingress are prevalent. Capable of automatically detecting day/night it comes with an inbuilt timer which can be set to operate loads at specific intervals or manually in the night.

Features:

– High efficient PWM charging – Automatically recognizes day/night – LED indicators for PV and battery status – Industrial design, wide application range – Intelligent timer function with 1 to 13 hours’ option – IP67 protection – PV reverse polarity protection – Battery overcharge, over discharge, reverse polarity and overheating protection – Load overload and short circuit protection

Specifications: Voltage: 12/24VDC Automatic Max. PV Input Voltage: 50V Current: 10A Equalize Voltage: 14.8V(12V);29.6V(24V) Boost Voltage: 14.4V(12V);28.8V(24V) Float Voltage: 13.7V(12V);27.4V(24V) Low Voltage Reconnect Voltage: 12.6V(12V);25.2V(24V) Low Voltage Disconnect Voltage: 11.2V(12V);22.4V(24V) Self-consumption: 12V: ≤4.58mA 24V: ≤6.01mA Temperature compensation coefficient:-5mV/°C/2V (25°C) Working temperature: -35°C – 55°C IP Rating: IP67 Mounting Dimension: 101mm Mounting hole size: Φ5 Power cable: PV/BAT/LOAD:4.0mm2 Weight: 410g Dimensions: 109(W) × 75(H) × 26(D)mm

Includes:
1 x Solar Controller
