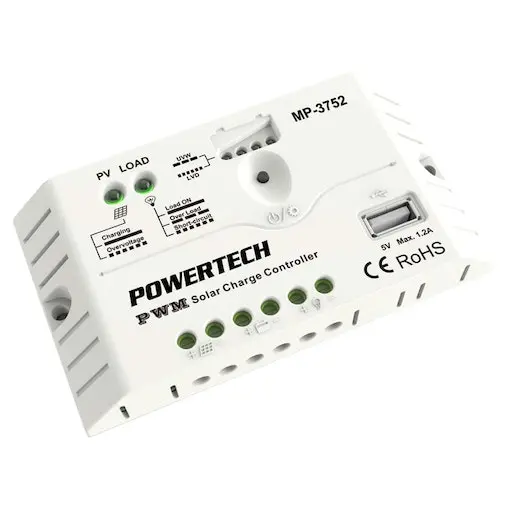

Powertech 12/24V 20A PWM Solar Charge Controller W/ USB F/ Sealed/Gel Battery

12V 24V 20A SOLAR CONTROLLER

12/24V 20A Solar Charge Controller with USB

Intelligent yet lightweight, this solar controller uses Pulse Width Modulation (PWM) to control battery charging. With total autonomy, its set-and-forget operation means you can get maximum charge into your batteries from your solar installation without having to worry about those things. It provides all the important safety features such as overload,short-circuit, over-discharge, and reverse-polarity protection. A handy feature is also the USB port located on the front panel, to provide up to 1.2A charging. Very handy during power outages to keep your phone charged without any additional equipment. Charge modes include bulk, equalise, and float charging, and the unit automatically switches to the best charging mode. Suitable for sealed led acid, as well as Gel/flooded type cells.

Features:
– Automatic charge mode selection
– Suitable for 12V and 24V battery banks
– USB charging port on front panel
– Charging Modes: Bulk, Equalise, Float
– Supports: Sealed, Gel and Flooded
– USB Output: 5V @ 1.2A

Specifications

DC current rating : 20.0A

DC Voltage : 12.0V, 24.0V

IP Rating : IP20

Dust/Particle Ingress Protection : 2 – Objects > 12.5mm, Fingers or small objects

Liquid/Moisture Ingress Protection : 0 – Not protected

Operating Temperature : -35.000000°C, 55.0°C

Input Type : Screw Terminal

Output Type : Screw Terminal

Total Current Rating : 1.2A

Number of Ports : 1.0pc

Length : 148.0mm

Width : 86.0mm

Height : 35.0mm

Weight : 160.0g

Charge Controller Technology : Pulse Width Modulated (PWM)

Max PV Open Circuit Voltage : 50.0V

Max Charging Current : 20.0A

Max Load Current : 20.0A

Max Solar Panel Array : 240.0W, 480.0W

Includes:
1 x Solar Controller
